Parking Lift Container Loading: Minimising Ocean Freight Through Unit Density

This article covers parking lift container loading — what the equipment does, where it makes sense, and the specifications that matter when evaluating it. It is written for buyers assessing the category for the first time.

What a Parking Lift Container Loading Actually Does

Mechanical parking equipment increases the number of vehicles stored within a fixed footprint by using vertical space. One vehicle is stored above another on a powered platform, converting a single ground-level bay into two usable spaces without extending the building envelope.

The practical consequence is that additional parking capacity can be created inside an existing structure, typically as internal works rather than construction — a materially different proposition from extending or building a new structure.

Where This Equipment Fits

• Residential garages and townhouses with a single-width bay
• Commercial and office parking where site area is fixed
• Urban facilities operating under tight footprint constraints
• Dealerships requiring display and storage density
• Fleet and logistics sites storing commercial vehicles

Range Overview

The SHININNOVATION range spans two structural configurations. The two-post PTP series uses shared columns and a cantilever platform for a slim footprint; the four-post PFP and PFPS series uses a full drive-on runway on four columns for higher capacities.

Two-post series

Model	Capacity	Lift height	Runway width	Drive system
PTP20/1800	2000 kg	1800 mm	2100 mm	Single-stage single cylinder
PTP25/1800	2500 kg	1800 mm	2100 mm	Single-stage single cylinder
PTP25/2100	2500 kg	2100 mm	2100 mm	Single-stage dual cylinders
PTP30/2100	3000 kg	2100 mm	2100 mm	Single-stage dual cylinders

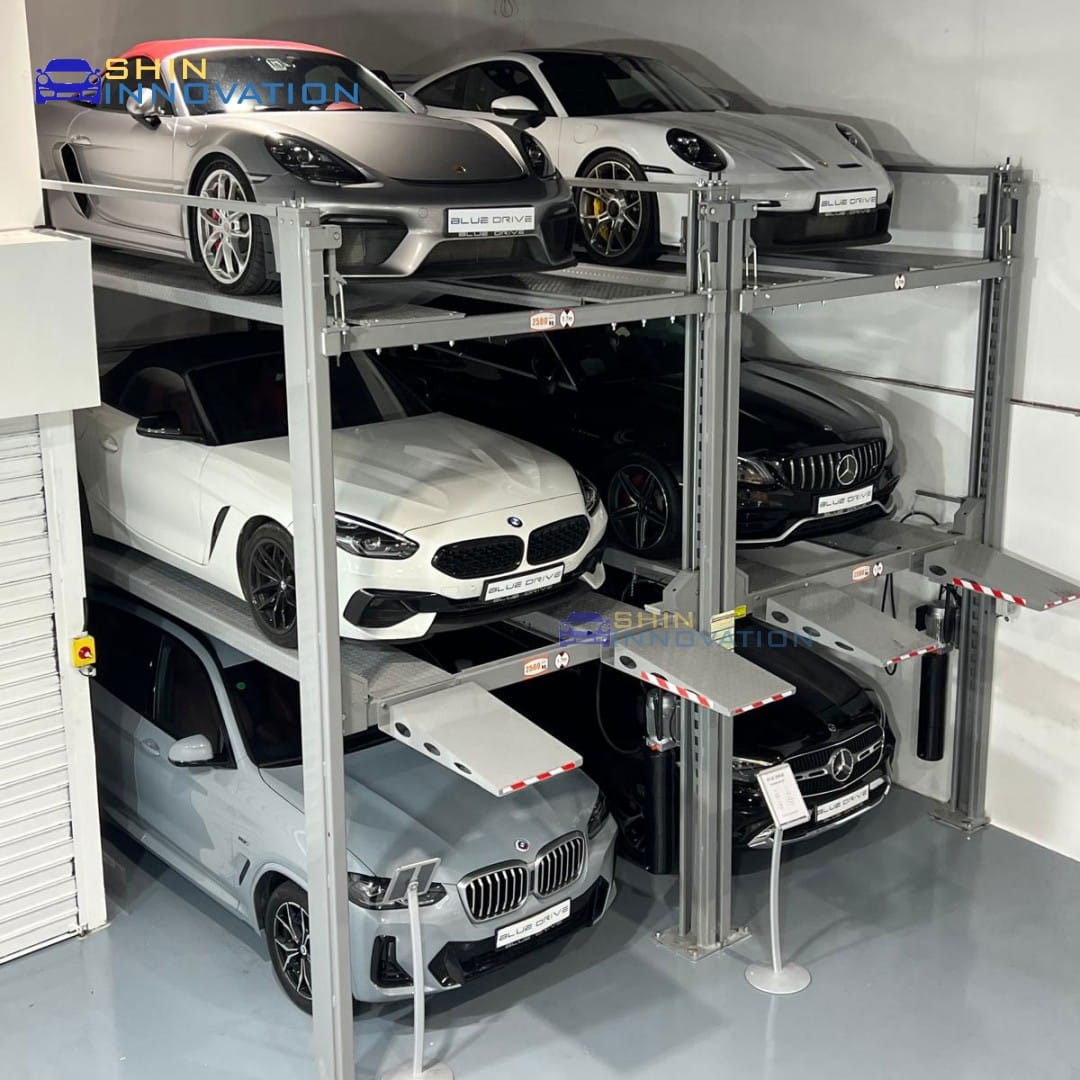

Four-post series

Model	Capacity	Lift height	External dimension	Drive system
PFP36/1800	3600 kg	1800 mm	width 2826 / height 4955 mm	Hydraulic cylinder, double deck
PFPS40/1800	4000 kg	1800 mm	5648 x 2898 x 2286 mm	Hydraulic cylinders with steel ropes & sheaves
PFP50S/2100	5000 kg	2100 mm	6250 x 3078 x 2626 mm	Hydraulic cylinders with steel ropes & sheaves

Practical Considerations Before You Proceed

Three site facts determine whether a given model is viable: the clear ceiling height at its lowest point, the condition and thickness of the floor slab at the anchor positions, and the weight of the heaviest vehicle to be stored above. Establish all three before requesting quotations — they will shorten the conversation considerably.

On certification, confirm which standard applies in your market. SHININNOVATION equipment is built to EN 1493:2010 and BS EN 14010:2003+A1:2009 and carries CE Marking for Europe.
